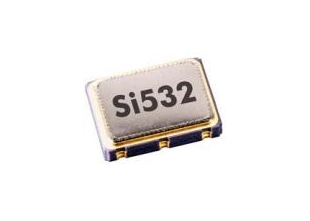

- 產品型號：5493538
- 晶振頻率：156.25MHz
- 晶振尺寸：7.0*5.0*1.5mm
- 產品應用： Skyworks晶振,532FC156M250DG晶振,Si532有源晶振,石英晶體振蕩器,美國進口晶振,7050mm晶振,六腳貼片晶振,低抖動晶振,高穩定性晶振,LVDS輸出晶振,差分晶振,6G基站晶振,SONET/SDH晶振.
-
美國Skyworks晶體,532FC156M250DG,6G基站晶振

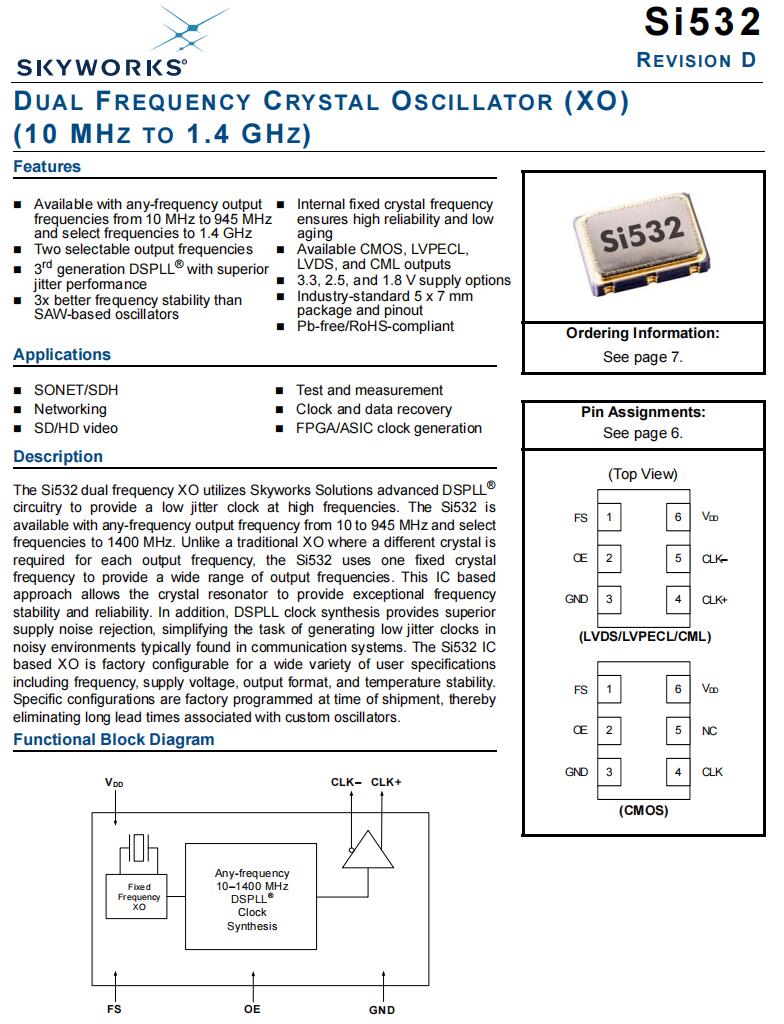

美國Skyworks晶體,532FC156M250DG,6G基站晶振,Si532雙頻XO采用Skyworks Solutions先進的DSPLL®電流,在高頻下提供低抖動時鐘,Si532有源晶振是可與任意頻率輸出頻率從10到945兆赫茲和選擇頻率到1400mhz.不像傳統的XO對于每個輸出頻率需要不同的晶體,Si532使用一個固定的晶體頻率來提供寬范圍的輸出頻率.這個基于IC的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性,美國進口晶振,7050mm晶振,石英晶體振蕩器,6G基站晶振,SONET/SDH晶振.
美國Skyworks晶體,532FC156M250DG,6G基站晶振特點：
美國Skyworks晶體,532FC156M250DG,6G基站晶振特點：
•可與任意速率輸出頻率從10MHz到945MHz和選擇頻率到1.4 GHz
•兩個可選的輸出頻率
•第三代DSPLL®具有優越的抖動性能
•頻率穩定性優于SAW-based振蕩器
•內部固定晶頻，可靠性高，老化低
•具備CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5和1.8 V電源選項
•行業標準的5 × 7mm封裝和引腳
•無鉛，符合RoHS標準
美國Skyworks晶體,532FC156M250DG,6G基站晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 156.25MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 2.5V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±7 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 98mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOD | 0.9VPP Max |
LVDS
|
| VO | 1.275V Max | ||
| 輸入電壓 | VIH | 0.75×VDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.42ps Max |
Differential Formats
|
.jpg)

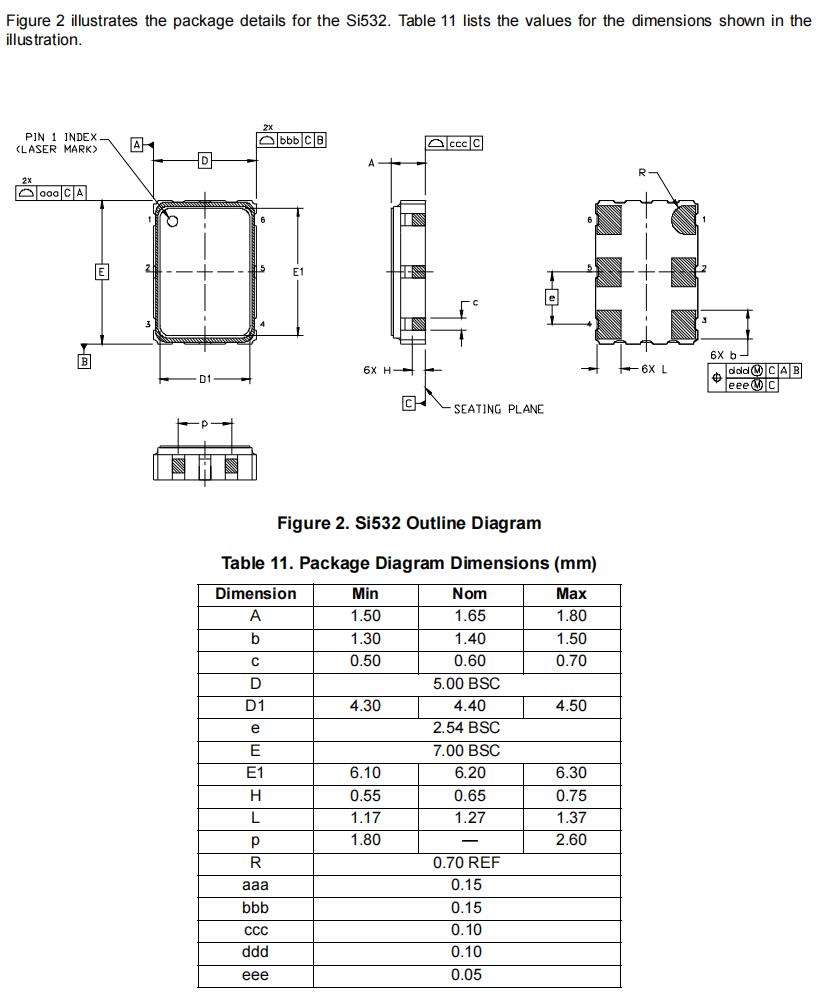

美國Skyworks晶體,532FC156M250DG,6G基站晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 |
| 531BC125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 3.3V |
| 531BC106M250DG | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVDS | 3.3V |
| 531EA200M000DG | Skyworks Solutions Inc. | Si531 | 200 MHz | LVPECL | 2.5V |
| 531FC156M250DG | Skyworks Solutions Inc. | Si531 | 156.25 MHz | LVDS | 2.5V |
| 531AC125M000DGR | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 3.3V |
| 531BA200M000DGR | Skyworks Solutions Inc. | Si531 | 200 MHz | LVDS | 3.3V |
| 531FA160M000DGR | Skyworks Solutions Inc. | Si531 | 160 MHz | LVDS | 2.5V |
| 531FC300M000DG | Skyworks Solutions Inc. | Si531 | 300 MHz | LVDS | 2.5V |
| 531BB100M000DG | Skyworks Solutions Inc. | Si531 | 100 MHz | LVDS | 3.3V |
| 531EC200M000DG | Skyworks Solutions Inc. | Si531 | 200 MHz | LVPECL | 2.5V |
| 531FC000110DG | Skyworks Solutions Inc. | Si531 | 148.35165 MHz | LVDS | 2.5V |
| 531AA156M250DG | Skyworks Solutions Inc. | Si531 | 156.25 MHz | LVPECL | 3.3V |
| 531AB156M250DG | Skyworks Solutions Inc. | Si531 | 156.25 MHz | LVPECL | 3.3V |
| 531AC622M080DG | Skyworks Solutions Inc. | Si531 | 622.08 MHz | LVPECL | 3.3V |
| 531FC25M0000DGR | Skyworks Solutions Inc. | Si531 | 25 MHz | LVDS | 2.5V |
| 531AC187M500DG | Skyworks Solutions Inc. | Si531 | 187.5 MHz | LVPECL | 3.3V |
| 531FC000274DG | Skyworks Solutions Inc. | Si531 | 322.265625 MHz | LVDS | 2.5V |
| 531BC156M250DG | Skyworks Solutions Inc. | Si531 | 156.25 MHz | LVDS | 3.3V |
| 531BA125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 3.3V |
| 531FA125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 2.5V |
| 531BC156M250DGR | Skyworks Solutions Inc. | Si531 | 156.25 MHz | LVDS | 3.3V |
| 531FC100M000DG | Skyworks Solutions Inc. | Si531 | 100 MHz | LVDS | 2.5V |
| 531AC156M250DG | Skyworks Solutions Inc. | Si531 | 156.25 MHz | LVPECL | 3.3V |
| 531EC156M250DG | Skyworks Solutions Inc. | Si531 | 156.25 MHz | LVPECL | 2.5V |
| 531BC148M500DG | Skyworks Solutions Inc. | Si531 | 148.5 MHz | LVDS | 3.3V |
| 531BC200M000DG | Skyworks Solutions Inc. | Si531 | 200 MHz | LVDS | 3.3V |
| 531FC200M000DG | Skyworks Solutions Inc. | Si531 | 200 MHz | LVDS | 2.5V |
| 531BB125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 3.3V |
| 531FB106M250DG | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVDS | 2.5V |
| 531FB200M000DG | Skyworks Solutions Inc. | Si531 | 200 MHz | LVDS | 2.5V |
| 531FC312M500DG | Skyworks Solutions Inc. | Si531 | 312.5 MHz | LVDS | 2.5V |
| 531FC125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 2.5V |
| 531AC125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 3.3V |
| 531EC125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 2.5V |
| 531FC106M250DG | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVDS | 2.5V |
| 531AC200M000DGR | Skyworks Solutions Inc. | Si531 | 200 MHz | LVPECL | 3.3V |
| 531BC000110DGR | Skyworks Solutions Inc. | Si531 | 148.35165 MHz | LVDS | 3.3V |
| 531BC148M500DGR | Skyworks Solutions Inc. | Si531 | 148.5 MHz | LVDS | 3.3V |
| 531FC155M520DG | Skyworks Solutions Inc. | Si531 | 155.52 MHz | LVDS | 2.5V |
| 531BC000110DG | Skyworks Solutions Inc. | Si531 | 148.35165 MHz | LVDS | 3.3V |
| 531FC148M500DG | Skyworks Solutions Inc. | Si531 | 148.5 MHz | LVDS | 2.5V |
| 531FB125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 2.5V |
| 531BC312M500DG | Skyworks Solutions Inc. | Si531 | 312.5 MHz | LVDS | 3.3V |
| 531AC250M000DG | Skyworks Solutions Inc. | Si531 | 250 MHz | LVPECL | 3.3V |
| 531BC250M000DG | Skyworks Solutions Inc. | Si531 | 250 MHz | LVDS | 3.3V |
| 531FC250M000DG | Skyworks Solutions Inc. | Si531 | 250 MHz | LVDS | 2.5V |
| 531EC106M250DG | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVPECL | 2.5V |
| 531FB150M000DG | Skyworks Solutions Inc. | Si531 | 150 MHz | LVDS | 2.5V |
| 531AC100M000DG | Skyworks Solutions Inc. | Si531 | 100 MHz | LVPECL | 3.3V |
| 531FA312M500DG | Skyworks Solutions Inc. | Si531 | 312.5 MHz | LVDS | 2.5V |
| 531BC311M040DG | Skyworks Solutions Inc. | Si531 | 311.04 MHz | LVDS | 3.3V |
| 531NA000185DGR | Skyworks Solutions Inc. | Si531 | 161.132812 MHz | LVDS | 3.3V |
| 531NA161M132DGR | Skyworks Solutions Inc. | Si531 | 161.132 MHz | LVDS | 3.3V |
| 531NA000185DG | Skyworks Solutions Inc. | Si531 | 161.132812 MHz | LVDS | 3.3V |
| 531NA161M132DG | Skyworks Solutions Inc. | Si531 | 161.132 MHz | LVDS | 3.3V |
| 531BB122M880DGR | Skyworks Solutions Inc. | Si531 | 122.88 MHz | LVDS | 3.3V |
| 531NB122M880DGR | Skyworks Solutions Inc. | Si531 | 122.88 MHz | LVDS | 3.3V |
| 531NB80M0000DGR | Skyworks Solutions Inc. | Si531 | 80 MHz | LVDS | 3.3V |
| 531BB122M880DG | Skyworks Solutions Inc. | Si531 | 122.88 MHz | LVDS | 3.3V |
| 531NB122M880DG | Skyworks Solutions Inc. | Si531 | 122.88 MHz | LVDS | 3.3V |
| 531NB80M0000DG | Skyworks Solutions Inc. | Si531 | 80 MHz | LVDS | 3.3V |
| 531AC114M285DG | Skyworks Solutions Inc. | Si531 | 114.285 MHz | LVPECL | 3.3V |
| 531AC116M444DG | Skyworks Solutions Inc. | Si531 | 116.444 MHz | LVPECL | 3.3V |
| 531AC25M0002DG | Skyworks Solutions Inc. | Si531 | 25.0002 MHz | LVPECL | 3.3V |
| 531BC22M5792DG | Skyworks Solutions Inc. | Si531 | 22.5792 MHz | LVDS | 3.3V |
| 531AC114M285DGR | Skyworks Solutions Inc. | Si531 | 114.285 MHz | LVPECL | 3.3V |
| 531AC116M444DGR | Skyworks Solutions Inc. | Si531 | 116.444 MHz | LVPECL | 3.3V |
| 531AC25M0002DGR | Skyworks Solutions Inc. | Si531 | 25.0002 MHz | LVPECL | 3.3V |
| 531BC22M5792DGR | Skyworks Solutions Inc. | Si531 | 22.5792 MHz | LVDS | 3.3V |
| 531BB000185DG | Skyworks Solutions Inc. | Si531 | 185 kHz | LVDS | 3.3V |
| 531FB148M350DG | Skyworks Solutions Inc. | Si531 | 148.35 MHz | LVDS | 2.5V |
| 531NB161M132DG | Skyworks Solutions Inc. | Si531 | 161.132 MHz | LVDS | 3.3V |
| 531BB000185DGR | Skyworks Solutions Inc. | Si531 | 185 kHz | LVDS | 3.3V |
| 531FB148M350DGR | Skyworks Solutions Inc. | Si531 | 148.35 MHz | LVDS | 2.5V |
| 531NB161M132DGR | Skyworks Solutions Inc. | Si531 | 161.132 MHz | LVDS | 3.3V |
| 531BA48M0000DGR | Skyworks Solutions Inc. | Si531 | 48 MHz | LVDS | 3.3V |
| 531AA000183DGR | Skyworks Solutions Inc. | Si531 | 183 kHz | LVPECL | 3.3V |
| 531AA100M000DGR | Skyworks Solutions Inc. | Si531 | 100 MHz | LVPECL | 3.3V |
| 531AA100M100DGR | Skyworks Solutions Inc. | Si531 | 100.1 MHz | LVPECL | 3.3V |
| 531AA106M250DGR | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVPECL | 3.3V |
| 531AA10M0000DGR | Skyworks Solutions Inc. | Si531 | 10 MHz | LVPECL | 3.3V |
| 531AA112M000DGR | Skyworks Solutions Inc. | Si531 | 112 MHz | LVPECL | 3.3V |
| 531AA114M285DGR | Skyworks Solutions Inc. | Si531 | 114.285 MHz | LVPECL | 3.3V |
| 531AA120M000DGR | Skyworks Solutions Inc. | Si531 | 120 MHz | LVPECL | 3.3V |
| 531AA125M000DGR | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 3.3V |
| 531AA14M2500DGR | Skyworks Solutions Inc. | Si531 | 14.25 MHz | LVPECL | 3.3V |
| 531AA19M4400DGR | Skyworks Solutions Inc. | Si531 | 19.44 MHz | LVPECL | 3.3V |
| 531AA20M0000DGR | Skyworks Solutions Inc. | Si531 | 20 MHz | LVPECL | 3.3V |
| 531AA25M0000DGR | Skyworks Solutions Inc. | Si531 | 25 MHz | LVPECL | 3.3V |
| 531AA38M8800DGR | Skyworks Solutions Inc. | Si531 | 38.88 MHz | LVPECL | 3.3V |
| 531AA62M5000DGR | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVPECL | 3.3V |
| 531AA64M0000DGR | Skyworks Solutions Inc. | Si531 | 64 MHz | LVPECL | 3.3V |
| 531AA78M1250DGR | Skyworks Solutions Inc. | Si531 | 78.125 MHz | LVPECL | 3.3V |
| 531AA80M0000DGR | Skyworks Solutions Inc. | Si531 | 80 MHz | LVPECL | 3.3V |
| 531AA83M0000DGR | Skyworks Solutions Inc. | Si531 | 83 MHz | LVPECL | 3.3V |
| 531AA83M3333DGR | Skyworks Solutions Inc. | Si531 | 83.3333 MHz | LVPECL | 3.3V |
| 531AA85M0000DGR | Skyworks Solutions Inc. | Si531 | 85 MHz | LVPECL | 3.3V |
| 531AA90M0000DGR | Skyworks Solutions Inc. | Si531 | 90 MHz | LVPECL | 3.3V |
| 531BA100M000DGR | Skyworks Solutions Inc. | Si531 | 100 MHz | LVDS | 3.3V |
| 531BA100M300DGR | Skyworks Solutions Inc. | Si531 | 100.3 MHz | LVDS | 3.3V |
| 531BA106M250DGR | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVDS | 3.3V |
| 531BA120M000DGR | Skyworks Solutions Inc. | Si531 | 120 MHz | LVDS | 3.3V |
| 531BA125M000DGR | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 3.3V |
| 531BA29M4912DGR | Skyworks Solutions Inc. | Si531 | 29.4912 MHz | LVDS | 3.3V |
| 531BA40M0000DGR | Skyworks Solutions Inc. | Si531 | 40 MHz | LVDS | 3.3V |
| 531BA49M1520DGR | Skyworks Solutions Inc. | Si531 | 49.152 MHz | LVDS | 3.3V |
| 531BA50M0000DGR | Skyworks Solutions Inc. | Si531 | 50 MHz | LVDS | 3.3V |
| 531BA62M5000DGR | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVDS | 3.3V |
| 531BA66M0000DGR | Skyworks Solutions Inc. | Si531 | 66 MHz | LVDS | 3.3V |
| 531BA75M0000DGR | Skyworks Solutions Inc. | Si531 | 75 MHz | LVDS | 3.3V |
| 531BA80M0000DGR | Skyworks Solutions Inc. | Si531 | 80 MHz | LVDS | 3.3V |
| 531BA98M0000DGR | Skyworks Solutions Inc. | Si531 | 98 MHz | LVDS | 3.3V |
| 531EA100M000DGR | Skyworks Solutions Inc. | Si531 | 100 MHz | LVPECL | 2.5V |
| 531EA122M880DGR | Skyworks Solutions Inc. | Si531 | 122.88 MHz | LVPECL | 2.5V |
| 531EA123M520DGR | Skyworks Solutions Inc. | Si531 | 123.52 MHz | LVPECL | 2.5V |
| 531EA125M000DGR | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 2.5V |
| 531EA38M4000DGR | Skyworks Solutions Inc. | Si531 | 38.4 MHz | LVPECL | 2.5V |
| 531EA50M0000DGR | Skyworks Solutions Inc. | Si531 | 50 MHz | LVPECL | 2.5V |
| 531EA61M4400DGR | Skyworks Solutions Inc. | Si531 | 61.44 MHz | LVPECL | 2.5V |
| 531EA84M0000DGR | Skyworks Solutions Inc. | Si531 | 84 MHz | LVPECL | 2.5V |
| 531FA100M000DGR | Skyworks Solutions Inc. | Si531 | 100 MHz | LVDS | 2.5V |
| 531FA108M000DGR | Skyworks Solutions Inc. | Si531 | 108 MHz | LVDS | 2.5V |
| 531FA120M000DGR | Skyworks Solutions Inc. | Si531 | 120 MHz | LVDS | 2.5V |
| 531FA123M930DGR | Skyworks Solutions Inc. | Si531 | 123.93 MHz | LVDS | 2.5V |
| 531FA124M400DGR | Skyworks Solutions Inc. | Si531 | 124.4 MHz | LVDS | 2.5V |
| 531FA125M000DGR | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 2.5V |
| 531FA25M0000DGR | Skyworks Solutions Inc. | Si531 | 25 MHz | LVDS | 2.5V |
| 531FA27M0000DGR | Skyworks Solutions Inc. | Si531 | 27 MHz | LVDS | 2.5V |
| 531FA50M0000DGR | Skyworks Solutions Inc. | Si531 | 50 MHz | LVDS | 2.5V |
| 531FA80M0000DGR | Skyworks Solutions Inc. | Si531 | 80 MHz | LVDS | 2.5V |
| 531FA81M0000DGR | Skyworks Solutions Inc. | Si531 | 81 MHz | LVDS | 2.5V |
| 531MA106M250DGR | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVPECL | 3.3V |
| 531MA50M0000DGR | Skyworks Solutions Inc. | Si531 | 50 MHz | LVPECL | 3.3V |
| 531MA62M5000DGR | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVPECL | 3.3V |
| 531MA66M0000DGR | Skyworks Solutions Inc. | Si531 | 66 MHz | LVPECL | 3.3V |
| 531NA24M5760DGR | Skyworks Solutions Inc. | Si531 | 24.576 MHz | LVDS | 3.3V |
| 531AB134M561DG | Skyworks Solutions Inc. | Si531 | 134.561 MHz | LVPECL | 3.3V |
| 531AB134M561DGR | Skyworks Solutions Inc. | Si531 | 134.561 MHz | LVPECL | 3.3V |
| 531AC178M019DG | Skyworks Solutions Inc. | Si531 | 178.019 MHz | LVPECL | 3.3V |
| 531AC178M019DGR | Skyworks Solutions Inc. | Si531 | 178.019 MHz | LVPECL | 3.3V |
| 531AC240M000DG | Skyworks Solutions Inc. | Si531 | 240 MHz | LVPECL | 3.3V |
| 531AC240M000DGR | Skyworks Solutions Inc. | Si531 | 240 MHz | LVPECL | 3.3V |
| 531FB122M880DG | Skyworks Solutions Inc. | Si531 | 122.88 MHz | LVDS | 2.5V |
| 531FB122M880DGR | Skyworks Solutions Inc. | Si531 | 122.88 MHz | LVDS | 2.5V |
| 531FC000127DG | Skyworks Solutions Inc. | Si531 | 644.53125 MHz | LVDS | 2.5V |
| 531FC000127DGR | Skyworks Solutions Inc. | Si531 | 644.53125 MHz | LVDS | 2.5V |
| 531BA48M0000DG | Skyworks Solutions Inc. | Si531 | 48 MHz | LVDS | 3.3V |
| 531BA66M0000DG | Skyworks Solutions Inc. | Si531 | 66 MHz | LVDS | 3.3V |
| 531BA75M0000DG | Skyworks Solutions Inc. | Si531 | 75 MHz | LVDS | 3.3V |
| 531BA80M0000DG | Skyworks Solutions Inc. | Si531 | 80 MHz | LVDS | 3.3V |
| 531BA98M0000DG | Skyworks Solutions Inc. | Si531 | 98 MHz | LVDS | 3.3V |
| 531EA100M000DG | Skyworks Solutions Inc. | Si531 | 100 MHz | LVPECL | 2.5V |
| 531EA122M880DG | Skyworks Solutions Inc. | Si531 | 122.88 MHz | LVPECL | 2.5V |
| 531EA123M520DG | Skyworks Solutions Inc. | Si531 | 123.52 MHz | LVPECL | 2.5V |
| 531EA125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 2.5V |
| 531EA38M4000DG | Skyworks Solutions Inc. | Si531 | 38.4 MHz | LVPECL | 2.5V |
| 531EA50M0000DG | Skyworks Solutions Inc. | Si531 | 50 MHz | LVPECL | 2.5V |
| 531EA61M4400DG | Skyworks Solutions Inc. | Si531 | 61.44 MHz | LVPECL | 2.5V |
| 531EA84M0000DG | Skyworks Solutions Inc. | Si531 | 84 MHz | LVPECL | 2.5V |
| 531FA100M000DG | Skyworks Solutions Inc. | Si531 | 100 MHz | LVDS | 2.5V |
| 531FA108M000DG | Skyworks Solutions Inc. | Si531 | 108 MHz | LVDS | 2.5V |
| 531FA120M000DG | Skyworks Solutions Inc. | Si531 | 120 MHz | LVDS | 2.5V |
| 531FA123M930DG | Skyworks Solutions Inc. | Si531 | 123.93 MHz | LVDS | 2.5V |
| 531FA124M400DG | Skyworks Solutions Inc. | Si531 | 124.4 MHz | LVDS | 2.5V |
| 531FA25M0000DG | Skyworks Solutions Inc. | Si531 | 25 MHz | LVDS | 2.5V |
| 531FA27M0000DG | Skyworks Solutions Inc. | Si531 | 27 MHz | LVDS | 2.5V |
| 531FA50M0000DG | Skyworks Solutions Inc. | Si531 | 50 MHz | LVDS | 2.5V |
| 531FA80M0000DG | Skyworks Solutions Inc. | Si531 | 80 MHz | LVDS | 2.5V |
| 531FA81M0000DG | Skyworks Solutions Inc. | Si531 | 81 MHz | LVDS | 2.5V |
| 531MA106M250DG | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVPECL | 3.3V |
| 531MA50M0000DG | Skyworks Solutions Inc. | Si531 | 50 MHz | LVPECL | 3.3V |
| 531MA62M5000DG | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVPECL | 3.3V |
| 531MA66M0000DG | Skyworks Solutions Inc. | Si531 | 66 MHz | LVPECL | 3.3V |
| 531NA24M5760DG | Skyworks Solutions Inc. | Si531 | 24.576 MHz | LVDS | 3.3V |
| 531AA000183DG | Skyworks Solutions Inc. | Si531 | 183 kHz | LVPECL | 3.3V |
| 531AA100M000DG | Skyworks Solutions Inc. | Si531 | 100 MHz | LVPECL | 3.3V |
| 531AA100M100DG | Skyworks Solutions Inc. | Si531 | 100.1 MHz | LVPECL | 3.3V |
| 531AA106M250DG | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVPECL | 3.3V |
| 531AA10M0000DG | Skyworks Solutions Inc. | Si531 | 10 MHz | LVPECL | 3.3V |
| 531AA112M000DG | Skyworks Solutions Inc. | Si531 | 112 MHz | LVPECL | 3.3V |
| 531AA114M285DG | Skyworks Solutions Inc. | Si531 | 114.285 MHz | LVPECL | 3.3V |
| 531AA120M000DG | Skyworks Solutions Inc. | Si531 | 120 MHz | LVPECL | 3.3V |
| 531AA125M000DG | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 3.3V |
| 531AA14M2500DG | Skyworks Solutions Inc. | Si531 | 14.25 MHz | LVPECL | 3.3V |
| 531AA19M4400DG | Skyworks Solutions Inc. | Si531 | 19.44 MHz | LVPECL | 3.3V |
| 531AA20M0000DG | Skyworks Solutions Inc. | Si531 | 20 MHz | LVPECL | 3.3V |
| 531AA25M0000DG | Skyworks Solutions Inc. | Si531 | 25 MHz | LVPECL | 3.3V |
| 531AA38M8800DG | Skyworks Solutions Inc. | Si531 | 38.88 MHz | LVPECL | 3.3V |
| 531AA62M5000DG | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVPECL | 3.3V |
| 531AA64M0000DG | Skyworks Solutions Inc. | Si531 | 64 MHz | LVPECL | 3.3V |
| 531AA78M1250DG | Skyworks Solutions Inc. | Si531 | 78.125 MHz | LVPECL | 3.3V |
| 531AA80M0000DG | Skyworks Solutions Inc. | Si531 | 80 MHz | LVPECL | 3.3V |
| 531AA83M0000DG | Skyworks Solutions Inc. | Si531 | 83 MHz | LVPECL | 3.3V |
| 531AA83M3333DG | Skyworks Solutions Inc. | Si531 | 83.3333 MHz | LVPECL | 3.3V |
| 531AA85M0000DG | Skyworks Solutions Inc. | Si531 | 85 MHz | LVPECL | 3.3V |
| 531AA90M0000DG | Skyworks Solutions Inc. | Si531 | 90 MHz | LVPECL | 3.3V |
| 531BA100M000DG | Skyworks Solutions Inc. | Si531 | 100 MHz | LVDS | 3.3V |
| 531BA100M300DG | Skyworks Solutions Inc. | Si531 | 100.3 MHz | LVDS | 3.3V |
| 531BA106M250DG | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVDS | 3.3V |
| 531BA120M000DG | Skyworks Solutions Inc. | Si531 | 120 MHz | LVDS | 3.3V |
| 531BA29M4912DG | Skyworks Solutions Inc. | Si531 | 29.4912 MHz | LVDS | 3.3V |
| 531BA40M0000DG | Skyworks Solutions Inc. | Si531 | 40 MHz | LVDS | 3.3V |
| 531BA49M1520DG | Skyworks Solutions Inc. | Si531 | 49.152 MHz | LVDS | 3.3V |
| 531BA50M0000DG | Skyworks Solutions Inc. | Si531 | 50 MHz | LVDS | 3.3V |
| 531BA62M5000DG | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVDS | 3.3V |
| 531AB000186DGR | Skyworks Solutions Inc. | Si531 | 186 kHz | LVPECL | 3.3V |
| 531AB100M000DGR | Skyworks Solutions Inc. | Si531 | 100 MHz | LVPECL | 3.3V |
| 531AB106M250DGR | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVPECL | 3.3V |
| 531AB10M0000DGR | Skyworks Solutions Inc. | Si531 | 10 MHz | LVPECL | 3.3V |
| 531AB114M285DGR | Skyworks Solutions Inc. | Si531 | 114.285 MHz | LVPECL | 3.3V |
| 531AB123M930DGR | Skyworks Solutions Inc. | Si531 | 123.93 MHz | LVPECL | 3.3V |
| 531AB125M000DGR | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 3.3V |
| 531AB19M4400DGR | Skyworks Solutions Inc. | Si531 | 19.44 MHz | LVPECL | 3.3V |
| 531AB25M0000DGR | Skyworks Solutions Inc. | Si531 | 25 MHz | LVPECL | 3.3V |
| 531AB33M8800DGR | Skyworks Solutions Inc. | Si531 | 33.88 MHz | LVPECL | 3.3V |
| 531AB41M6600DGR | Skyworks Solutions Inc. | Si531 | 41.66 MHz | LVPECL | 3.3V |
| 531AB50M0000DGR | Skyworks Solutions Inc. | Si531 | 50 MHz | LVPECL | 3.3V |
| 531AB55M5555DGR | Skyworks Solutions Inc. | Si531 | 55.5555 MHz | LVPECL | 3.3V |
| 531AB60M0000DGR | Skyworks Solutions Inc. | Si531 | 60 MHz | LVPECL | 3.3V |
| 531AB62M5000DGR | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVPECL | 3.3V |
| 531AB77M7600DGR | Skyworks Solutions Inc. | Si531 | 77.76 MHz | LVPECL | 3.3V |
| 531AB80M0000DGR | Skyworks Solutions Inc. | Si531 | 80 MHz | LVPECL | 3.3V |
| 531AB85M0000DGR | Skyworks Solutions Inc. | Si531 | 85 MHz | LVPECL | 3.3V |
| 531AB90M0000DGR | Skyworks Solutions Inc. | Si531 | 90 MHz | LVPECL | 3.3V |
| 531AB99M1440DGR | Skyworks Solutions Inc. | Si531 | 99.144 MHz | LVPECL | 3.3V |
| 531BB000353DGR | Skyworks Solutions Inc. | Si531 | 353 kHz | LVDS | 3.3V |
| 531BB100M000DGR | Skyworks Solutions Inc. | Si531 | 100 MHz | LVDS | 3.3V |
| 531BB102M400DGR | Skyworks Solutions Inc. | Si531 | 102.4 MHz | LVDS | 3.3V |
| 531BB104M166DGR | Skyworks Solutions Inc. | Si531 | 104.166 MHz | LVDS | 3.3V |
| 531BB106M250DGR | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVDS | 3.3V |
| 531BB108M000DGR | Skyworks Solutions Inc. | Si531 | 108 MHz | LVDS | 3.3V |
| 531BB120M000DGR | Skyworks Solutions Inc. | Si531 | 120 MHz | LVDS | 3.3V |
| 531BB125M000DGR | Skyworks Solutions Inc. | Si531 | 125 MHz | LVDS | 3.3V |
| 531BB19M4400DGR | Skyworks Solutions Inc. | Si531 | 19.44 MHz | LVDS | 3.3V |
| 531BB25M0000DGR | Skyworks Solutions Inc. | Si531 | 25 MHz | LVDS | 3.3V |
| 531BB49M1520DGR | Skyworks Solutions Inc. | Si531 | 49.152 MHz | LVDS | 3.3V |
| 531BB50M0000DGR | Skyworks Solutions Inc. | Si531 | 50 MHz | LVDS | 3.3V |
| 531BB60M0000DGR | Skyworks Solutions Inc. | Si531 | 60 MHz | LVDS | 3.3V |
| 531BB62M5000DGR | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVDS | 3.3V |
| 531BB65M0000DGR | Skyworks Solutions Inc. | Si531 | 65 MHz | LVDS | 3.3V |
| 531BB66M0000DGR | Skyworks Solutions Inc. | Si531 | 66 MHz | LVDS | 3.3V |
| 531BB74M2500DGR | Skyworks Solutions Inc. | Si531 | 74.25 MHz | LVDS | 3.3V |
| 531BB80M0000DGR | Skyworks Solutions Inc. | Si531 | 80 MHz | LVDS | 3.3V |
| 531BB82M5000DGR | Skyworks Solutions Inc. | Si531 | 82.5 MHz | LVDS | 3.3V |
| 531BB85M0000DGR | Skyworks Solutions Inc. | Si531 | 85 MHz | LVDS | 3.3V |
| 531BB92M4000DGR | Skyworks Solutions Inc. | Si531 | 92.4 MHz | LVDS | 3.3V |
| 531BB98M3040DGR | Skyworks Solutions Inc. | Si531 | 98.304 MHz | LVDS | 3.3V |
| 531BB99M0000DGR | Skyworks Solutions Inc. | Si531 | 99 MHz | LVDS | 3.3V |
| 531EB100M000DGR | Skyworks Solutions Inc. | Si531 | 100 MHz | LVPECL | 2.5V |
| 531EB106M250DGR | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVPECL | 2.5V |
| 531EB120M000DGR | Skyworks Solutions Inc. | Si531 | 120 MHz | LVPECL | 2.5V |
| 531EB121M109DGR | Skyworks Solutions Inc. | Si531 | 121.109 MHz | LVPECL | 2.5V |
| 531EB123M930DGR | Skyworks Solutions Inc. | Si531 | 123.93 MHz | LVPECL | 2.5V |
| 531EB125M000DGR | Skyworks Solutions Inc. | Si531 | 125 MHz | LVPECL | 2.5V |
| 531EB25M0000DGR | Skyworks Solutions Inc. | Si531 | 25 MHz | LVPECL | 2.5V |
| 531EB27M0000DGR | Skyworks Solutions Inc. | Si531 | 27 MHz | LVPECL | 2.5V |
| 531EB41M6600DGR | Skyworks Solutions Inc. | Si531 | 41.66 MHz | LVPECL | 2.5V |
| 531EB50M0000DGR | Skyworks Solutions Inc. | Si531 | 50 MHz | LVPECL | 2.5V |
| 531EB62M5000DGR | Skyworks Solutions Inc. | Si531 | 62.5 MHz | LVPECL | 2.5V |
| 531EB74M2500DGR | Skyworks Solutions Inc. | Si531 | 74.25 MHz | LVPECL | 2.5V |
| 531EB77M7600DGR | Skyworks Solutions Inc. | Si531 | 77.76 MHz | LVPECL | 2.5V |
| 531EB78M1250DGR | Skyworks Solutions Inc. | Si531 | 78.125 MHz | LVPECL | 2.5V |
| 531EB99M1440DGR | Skyworks Solutions Inc. | Si531 | 99.144 MHz | LVPECL | 2.5V |
| 531FB100M000DGR | Skyworks Solutions Inc. | Si531 | 100 MHz | LVDS | 2.5V |
| 531FB106M250DGR | Skyworks Solutions Inc. | Si531 | 106.25 MHz | LVDS | 2.5V |
| 531FB120M000DGR | Skyworks Solutions Inc. | Si531 | 120 MHz | LVDS | 2.5V |
1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受 專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 何疑問.讓您的消費得到保障。
3.質量保證，誠信為上 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.
深 圳 市 泰 河 電 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
電話:0755-27872782
手機:13824306246
郵箱:taiheth@163.com
Q Q:794113422
地址:深圳市寶安區40區33號工業城6樓
網址：http://m.lida00.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
微信:taihekj QQ:794113422
