- 產品型號：99127734
- 晶振頻率：156.25MHz
- 晶振尺寸：7.0*5.0*1.5mm
- 產品應用： Skyworks振蕩器,7050mm晶振,Si570有源晶振,570BAB000544DG晶振,高頻率穩定性晶振,高可靠性晶振,進口晶振,低抖動晶振,LVDS晶振,差分晶振,SMD晶體,6G無線網絡晶振,高性能儀器晶振,低抖動時鐘生成晶振.
-
Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振
Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振,Skyworks振蕩器,7050mm晶振,Si570有源晶振在任何頻率下提供低抖動時鐘的電路,Si570/Si571是用戶可編程到從10到945 MHz的任何輸出頻率和選擇頻率到1400MHz,分辨率< 1ppb,該設備是通過I2C串行編程的接口,不像傳統的XO,每個輸出頻率需要不同的晶體,Si570使用一個固定頻率晶體和一個DSPLL時鐘合成IC提供任意頻率的操作,這種基于集成電路的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性,LVDS晶振,差分晶振,SMD晶體,6G無線網絡晶振,高性能儀器晶振,低抖動時鐘生成晶振.

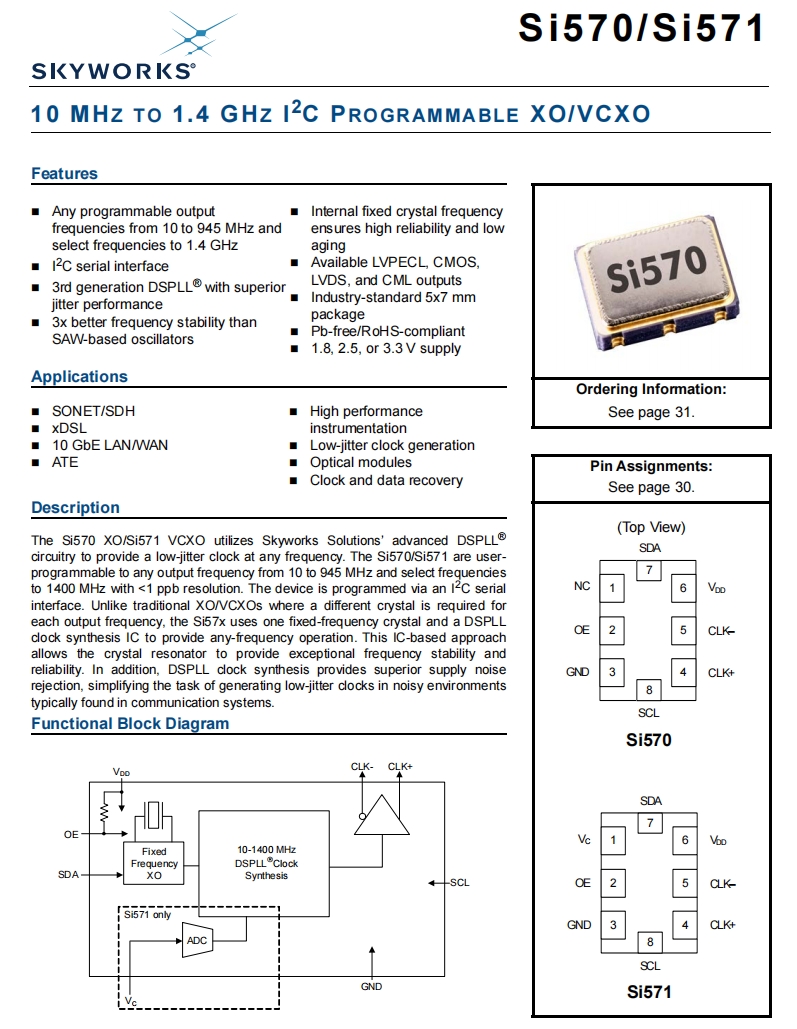

Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振特點：
•可與任意速率輸出頻率從10MHz到945MHz和選擇頻率到1.4 GHz
•I2C串行接口
•第三代DSPLL®具有優越的抖動性能
•頻率穩定性優于SAW-based振蕩器
•內部固定晶頻，可靠性高，老化低
•具備CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5和1.8 V電源選項
•工業標準的5 × 7mm封裝和引腳
•無鉛，符合RoHS標準
Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 156.25MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±50 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 108mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOD | 0.9VPP Max |
LVDS
|
| VO | 1.275V Max | ||
| 輸入電壓 | VIH | 0.75×VDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.62ps Max |
Differential Formats
|
.jpg)

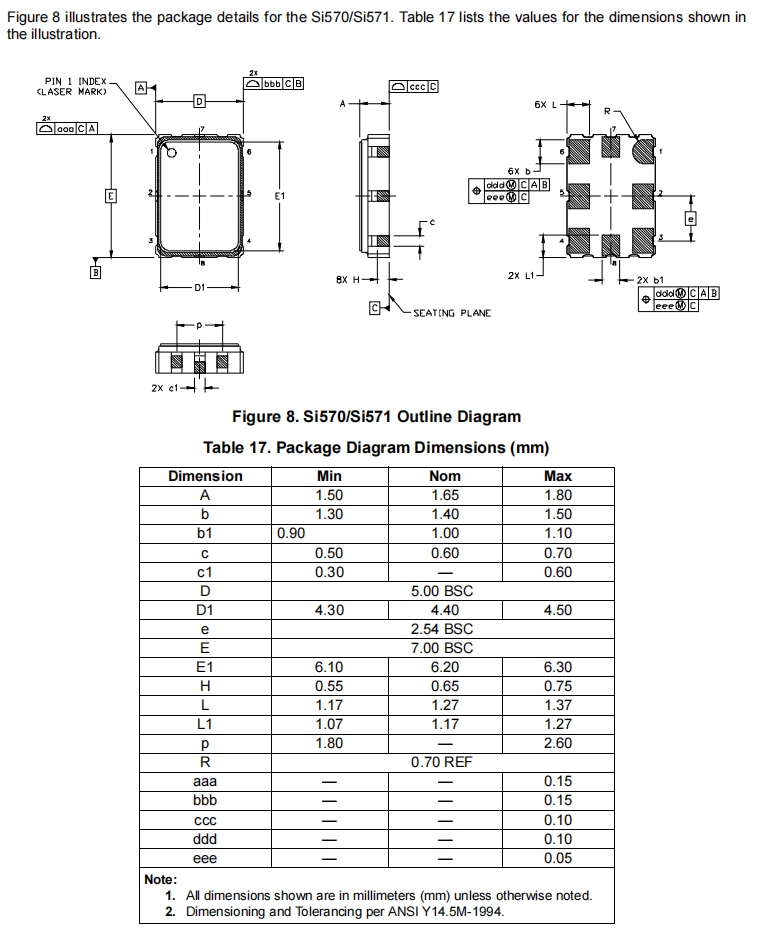

Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 570BAB000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570FAA000759DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±50ppm |
| 570BAB000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570BCC000112DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BBC000876DG | Skyworks Solutions Inc. | Si570 | 49.87013 MHz | LVDS | 3.3V | ±20ppm |
| 570ACA001527DGR | Skyworks Solutions Inc. | Si570 | 875 MHz | LVPECL | 3.3V | ±7ppm |
| 570BBC000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 570BAB000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001614DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001614DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB000299DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±50ppm |
| 570AAA000111DG | Skyworks Solutions Inc. | Si570 | 25 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC000129DG | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 570BAC000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 570BBC000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 570FBC000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 570BCC000107DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570MAC000118DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 570FAB000433DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAB000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±50ppm |
| 570ABB000419DG | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 570BBB000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 570BCB000177DG | Skyworks Solutions Inc. | Si570 | 297 MHz | LVDS | 3.3V | ±7ppm |
| 570BBC000159DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570BAB001641DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 570ABA001058DGR | Skyworks Solutions Inc. | Si570 | 644.53 MHz | LVPECL | 3.3V | ±20ppm |
| 570ABA001328DGR | Skyworks Solutions Inc. | Si570 | 1.066 GHz | LVPECL | 3.3V | ±20ppm |
| 570BBA000504DGR | Skyworks Solutions Inc. | Si570 | 48 MHz | LVDS | 3.3V | ±20ppm |
| 570BBC000131DG | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±20ppm |
| 570BBC000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±20ppm |
| 570BCB001530DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCB001530DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570FAB000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAB000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 2.5V | ±50ppm |
| 570FCB001691DG | Skyworks Solutions Inc. | Si570 | 698.8123 MHz | LVDS | 2.5V | ±7ppm |
| 570FCB001691DGR | Skyworks Solutions Inc. | Si570 | 698.8123 MHz | LVDS | 2.5V | ±7ppm |
| 570ABB000133DG | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 570ABB000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±20ppm |
| 570ACA000462DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000462DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570BAB000125DG | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB000125DGR | Skyworks Solutions Inc. | Si570 | 128.5 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001595DG | Skyworks Solutions Inc. | Si570 | 333 MHz | LVDS | 3.3V | ±50ppm |
| 570BAB001595DGR | Skyworks Solutions Inc. | Si570 | 333 MHz | LVDS | 3.3V | ±50ppm |
| 570BBA000504DG | Skyworks Solutions Inc. | Si570 | 48 MHz | LVDS | 3.3V | ±20ppm |
| 570AAC000270DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001528DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001762DGR | Skyworks Solutions Inc. | Si570 | 136.39008 MHz | LVPECL | 3.3V | ±50ppm |
| 570EAC000741DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| 570FAC000465DGR | Skyworks Solutions Inc. | Si570 | 60 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000833DGR | Skyworks Solutions Inc. | Si570 | 153.6 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001059DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001531DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570BCA000136DG | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000301DG | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA002166DG | Skyworks Solutions Inc. | Si570 | 33.333333 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000313DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001830DG | Skyworks Solutions Inc. | Si570 | 1.215 GHz | LVDS | 3.3V | ±7ppm |
| 570ACA002326DG | Skyworks Solutions Inc. | Si570 | 33.3333333 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002276DG | Skyworks Solutions Inc. | Si570 | 156.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000780DG | Skyworks Solutions Inc. | Si570 | 30 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000298DG | Skyworks Solutions Inc. | Si570 | 866 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000544DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000163DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA001040DG | Skyworks Solutions Inc. | Si570 | 188 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA002400DG | Skyworks Solutions Inc. | Si570 | 49.87013 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001123DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA002390DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001476DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000520DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000915DG | Skyworks Solutions Inc. | Si570 | 375 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002414DG | Skyworks Solutions Inc. | Si570 | 174.703 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000157DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002412DG | Skyworks Solutions Inc. | Si570 | 1.05 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000420DG | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002188DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVPECL | 3.3V | ±7ppm |
| 570AAC000270DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001528DG | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±50ppm |
| 570AAC001762DG | Skyworks Solutions Inc. | Si570 | 136.39008 MHz | LVPECL | 3.3V | ±50ppm |
| 570EAC000741DG | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 2.5V | ±50ppm |
| 570FAC000465DG | Skyworks Solutions Inc. | Si570 | 60 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC000833DG | Skyworks Solutions Inc. | Si570 | 153.6 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001059DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570FAC001531DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±50ppm |
| 570NBA000163DG | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000223DG | Skyworks Solutions Inc. | Si570 | 28.192 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000233DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000352DG | Skyworks Solutions Inc. | Si570 | 288.399994 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000724DG | Skyworks Solutions Inc. | Si570 | 26 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000725DG | Skyworks Solutions Inc. | Si570 | 56 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000726DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000727DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA000728DG | Skyworks Solutions Inc. | Si570 | 900 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001482DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001484DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001485DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570NBA001486DG | Skyworks Solutions Inc. | Si570 | 700 MHz | LVDS | 3.3V | ±20ppm |
| 570RBA000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 570SBA000121DG | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±20ppm |
| 570BBA000290DG | Skyworks Solutions Inc. | Si570 | 250 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001058DG | Skyworks Solutions Inc. | Si570 | 644.53 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002068DG | Skyworks Solutions Inc. | Si570 | 54 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002069DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570FBA000157DG | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 2.5V | ±20ppm |
| 570NBA000280DG | Skyworks Solutions Inc. | Si570 | 108 MHz | LVDS | 3.3V | ±20ppm |
| 570EBA000115DG | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 570BBA000111DG | Skyworks Solutions Inc. | Si570 | 25 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000372DG | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001553DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 3.3V | ±20ppm |
| 570BBA002195DG | Skyworks Solutions Inc. | Si570 | 500 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000653DG | Skyworks Solutions Inc. | Si570 | 161.132812 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA002365DG | Skyworks Solutions Inc. | Si570 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000313DG | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±20ppm |
| 570FBA000122DG | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 2.5V | ±20ppm |
| 570FBA000668DG | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±20ppm |
| 570BBA002392DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA000353DG | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 570BBA001873DG | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 570ACA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000111DGR | Skyworks Solutions Inc. | Si570 | 25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000141DGR | Skyworks Solutions Inc. | Si570 | 56.32 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000153DGR | Skyworks Solutions Inc. | Si570 | 12 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000163DGR | Skyworks Solutions Inc. | Si570 | 20 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000178DGR | Skyworks Solutions Inc. | Si570 | 16 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000233DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000368DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000430DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000496DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000514DGR | Skyworks Solutions Inc. | Si570 | 19.982 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000650DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000732DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000770DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000810DGR | Skyworks Solutions Inc. | Si570 | 135.3 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000918DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000919DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000957DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000958DGR | Skyworks Solutions Inc. | Si570 | 74.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000973DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001026DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001055DGR | Skyworks Solutions Inc. | Si570 | 103.125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001122DGR | Skyworks Solutions Inc. | Si570 | 1.4 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001154DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001210DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001273DGR | Skyworks Solutions Inc. | Si570 | 1.03125 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001432DGR | Skyworks Solutions Inc. | Si570 | 72 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001479DGR | Skyworks Solutions Inc. | Si570 | 431.92 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001528DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001557DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001617DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001644DGR | Skyworks Solutions Inc. | Si570 | 805.664063 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001732DGR | Skyworks Solutions Inc. | Si570 | 28 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001785DGR | Skyworks Solutions Inc. | Si570 | 19.982 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001786DGR | Skyworks Solutions Inc. | Si570 | 28 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001798DGR | Skyworks Solutions Inc. | Si570 | 307.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001864DGR | Skyworks Solutions Inc. | Si570 | 945 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001867DGR | Skyworks Solutions Inc. | Si570 | 19.984 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001874DGR | Skyworks Solutions Inc. | Si570 | 56.3202 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001880DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001922DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000111DGR | Skyworks Solutions Inc. | Si570 | 25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000126DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000141DGR | Skyworks Solutions Inc. | Si570 | 56.32 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000159DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000215DGR | Skyworks Solutions Inc. | Si570 | 27 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000233DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000274DGR | Skyworks Solutions Inc. | Si570 | 148 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000290DGR | Skyworks Solutions Inc. | Si570 | 250 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000305DGR | Skyworks Solutions Inc. | Si570 | 64 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000420DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000496DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000642DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000653DGR | Skyworks Solutions Inc. | Si570 | 161.132812 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000763DGR | Skyworks Solutions Inc. | Si570 | 1.09 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000918DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001026DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001031DGR | Skyworks Solutions Inc. | Si570 | 437.5 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001226DGR | Skyworks Solutions Inc. | Si570 | 1.02 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA001336DGR | Skyworks Solutions Inc. | Si570 | 288.3 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001407DGR | Skyworks Solutions Inc. | Si570 | 932 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001454DGR | Skyworks Solutions Inc. | Si570 | 691.2 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001467DGR | Skyworks Solutions Inc. | Si570 | 266.666667 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001754DGR | Skyworks Solutions Inc. | Si570 | 39.0625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001850DGR | Skyworks Solutions Inc. | Si570 | 625 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001915DGR | Skyworks Solutions Inc. | Si570 | 175 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001964DGR | Skyworks Solutions Inc. | Si570 | 14.875 MHz | LVDS | 3.3V | ±7ppm |
| 570ECA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 2.5V | ±7ppm |
| 570ECA000941DGR | Skyworks Solutions Inc. | Si570 | 56 MHz | LVPECL | 2.5V | ±7ppm |
| 570ECA001798DGR | Skyworks Solutions Inc. | Si570 | 307.2 MHz | LVPECL | 2.5V | ±7ppm |
| 570FCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000115DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000169DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000179DGR | Skyworks Solutions Inc. | Si570 | 312.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000372DGR | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000420DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000476DGR | Skyworks Solutions Inc. | Si570 | 322.265625 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000643DGR | Skyworks Solutions Inc. | Si570 | 212.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001031DGR | Skyworks Solutions Inc. | Si570 | 437.5 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001228DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001702DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001742DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001842DGR | Skyworks Solutions Inc. | Si570 | 200.08 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001879DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVDS | 2.5V | ±7ppm |
| 570MCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000121DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000346DGR | Skyworks Solutions Inc. | Si570 | 81.36 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA000763DGR | Skyworks Solutions Inc. | Si570 | 1.09 GHz | LVPECL | 3.3V | ±7ppm |
| 570MCA001230DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570MCA001303DGR | Skyworks Solutions Inc. | Si570 | 212 MHz | LVPECL | 3.3V | ±7ppm |
| 570NCA000107DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000159DGR | Skyworks Solutions Inc. | Si570 | 148.5 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000759DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000803DGR | Skyworks Solutions Inc. | Si570 | 148.351648 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000830DGR | Skyworks Solutions Inc. | Si570 | 74.9633969 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA000933DGR | Skyworks Solutions Inc. | Si570 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001047DGR | Skyworks Solutions Inc. | Si570 | 148.351 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001780DGR | Skyworks Solutions Inc. | Si570 | 106.92 MHz | LVDS | 3.3V | ±7ppm |
| 570NCA001881DGR | Skyworks Solutions Inc. | Si570 | 166 MHz | LVDS | 3.3V | ±7ppm |
| 570RCA000383DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVPECL | 2.5V | ±7ppm |
| 570RCA000825DGR | Skyworks Solutions Inc. | Si570 | 750 MHz | LVPECL | 2.5V | ±7ppm |
| 570RCA001068DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVPECL | 2.5V | ±7ppm |
| 570SCA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000212DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000273DGR | Skyworks Solutions Inc. | Si570 | 19.44 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000282DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000290DGR | Skyworks Solutions Inc. | Si570 | 250 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001930DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA001977DGR | Skyworks Solutions Inc. | Si570 | 24 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002083DGR | Skyworks Solutions Inc. | Si570 | 161.4 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002096DGR | Skyworks Solutions Inc. | Si570 | 477.225 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000144DGR | Skyworks Solutions Inc. | Si570 | 80 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000161DGR | Skyworks Solutions Inc. | Si570 | 491.52 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000202DGR | Skyworks Solutions Inc. | Si570 | 14.4 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000273DGR | Skyworks Solutions Inc. | Si570 | 19.44 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000313DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000597DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000627DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001344DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001432DGR | Skyworks Solutions Inc. | Si570 | 72 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA001978DGR | Skyworks Solutions Inc. | Si570 | 204.8 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002013DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002054DGR | Skyworks Solutions Inc. | Si570 | 174.703 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002055DGR | Skyworks Solutions Inc. | Si570 | 174.7031 MHz | LVDS | 3.3V | ±7ppm |
| 570ECA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVPECL | 2.5V | ±7ppm |
| 570FCA000122DGR | Skyworks Solutions Inc. | Si570 | 1 GHz | LVDS | 2.5V | ±7ppm |
| 570FCA000136DGR | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA000400DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001346DGR | Skyworks Solutions Inc. | Si570 | 200.08 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA001624DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 570MCA001978DGR | Skyworks Solutions Inc. | Si570 | 204.8 MHz | LVPECL | 3.3V | ±7ppm |
| 570NCA000118DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA002126DGR | Skyworks Solutions Inc. | Si570 | 152.987639 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA002145DGR | Skyworks Solutions Inc. | Si570 | 122.88 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000298DGR | Skyworks Solutions Inc. | Si570 | 866 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002325DGR | Skyworks Solutions Inc. | Si570 | 10.1313 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA000133DGR | Skyworks Solutions Inc. | Si570 | 500 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000372DGR | Skyworks Solutions Inc. | Si570 | 800 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002281DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA002265DGR | Skyworks Solutions Inc. | Si570 | 133.333 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002235DGR | Skyworks Solutions Inc. | Si570 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000896DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000907DGR | Skyworks Solutions Inc. | Si570 | 106.25 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000544DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000282DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA002229DGR | Skyworks Solutions Inc. | Si570 | 143.75 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000163DGR | Skyworks Solutions Inc. | Si570 | 20 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA002351DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA000780DGR | Skyworks Solutions Inc. | Si570 | 30 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002334DGR | Skyworks Solutions Inc. | Si570 | 99.75 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA000299DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000157DGR | Skyworks Solutions Inc. | Si570 | 50 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000804DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000458DGR | Skyworks Solutions Inc. | Si570 | 26 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000668DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570ECA000112DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 2.5V | ±7ppm |
| 570BCA000991DGR | Skyworks Solutions Inc. | Si570 | 135 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000685DGR | Skyworks Solutions Inc. | Si570 | 640 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002276DGR | Skyworks Solutions Inc. | Si570 | 156.2 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002287DGR | Skyworks Solutions Inc. | Si570 | 195.3125 MHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002280DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVPECL | 3.3V | ±7ppm |
| 570ACA002326DGR | Skyworks Solutions Inc. | Si570 | 33.3333333 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA000586DGR | Skyworks Solutions Inc. | Si570 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000676DGR | Skyworks Solutions Inc. | Si570 | 100 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA001844DGR | Skyworks Solutions Inc. | Si570 | 200 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002199DGR | Skyworks Solutions Inc. | Si570 | 644.53125 MHz | LVDS | 2.5V | ±7ppm |
| 570NCA000157DGR | Skyworks Solutions Inc. | Si570 | 50 MHz | LVDS | 3.3V | ±7ppm |
| 570BCA000301DGR | Skyworks Solutions Inc. | Si570 | 1.213 GHz | LVDS | 3.3V | ±7ppm |
| 570ACA000400DGR | Skyworks Solutions Inc. | Si570 | 10 MHz | LVPECL | 3.3V | ±7ppm |
| 570FCA002265DGR | Skyworks Solutions Inc. | Si570 | 133.333 MHz | LVDS | 2.5V | ±7ppm |
| 570BCA002166DGR | Skyworks Solutions Inc. | Si570 | 33.333333 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA002322DGR | Skyworks Solutions Inc. | Si570 | 13.1313 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001830DGR | Skyworks Solutions Inc. | Si570 | 1.215 GHz | LVDS | 3.3V | ±7ppm |
| 570BCA000136DGR | Skyworks Solutions Inc. | Si570 | 160 MHz | LVDS | 3.3V | ±7ppm |
| 570FCA000131DGR | Skyworks Solutions Inc. | Si570 | 120 MHz | LVDS | 2.5V | ±7ppm |
| 570FCA002183DGR | Skyworks Solutions Inc. | Si570 | 187.3125 MHz | LVDS | 2.5V | ±7ppm |
| 570ACA002327DGR | Skyworks Solutions Inc. | Si570 | 13.040521 MHz | LVPECL | 3.3V | ±7ppm |
| 570BCA001617DGR | Skyworks Solutions Inc. | Si570 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 570ACA000313DGR | Skyworks Solutions Inc. | Si570 | 300 MHz | LVPECL | 3.3V | ±7ppm |
量保證廣告圖.jpg)
1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受 專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 何疑問.讓您的消費得到保障。
3.質量保證，誠信為上 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請?zhí)崆昂蜆I(yè)務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.
熱線.jpg)
深 圳 市 泰 河 電 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
電話:0755-27872782
手機:13824306246
郵箱:taiheth@163.com
Q Q:794113422
地址:深圳市寶安區40區33號工業城6樓
網址：http://m.lida00.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
微信:taihekj QQ:794113422
