- 產品型號：48890428
- 晶振頻率：100MHz
- 晶振尺寸：5.0*3.2*1.2mm
- 產品應用： Skyworks Crystal,LVDS差分晶振,5032mm晶振,Si511 XO采用了Skyworks Solutions公司先進的DSPLL技術,提供從100千赫到250兆赫的任何頻率,不像傳統的XO其中每個輸出頻率需要不同的晶體,Si511使用一個固定晶體和Skyworks ...
-
Skyworks Crystal,511BBA100M000BAG,6G無線網絡晶振
Skyworks Crystal,511BBA100M000BAG,6G無線網絡晶振,Skyworks Crystal,LVDS差分晶振,有源晶振,Si511 XO采用了Skyworks Solutions公司先進的DSPLL技術,提供從100千赫到250兆赫的任何頻率,不像傳統的XO其中每個輸出頻率需要不同的晶體,Si511使用一個固定晶體和Skyworks Solutions的專有DSPLL合成器在這個范圍內產生任何頻率.這IC-based方法允許晶體諧振器提供更高的可靠性,提高了機械穩健性,穩定性極佳,6G無線網絡晶振,3G-SDI/HD-SDI/SDI晶振,電信交換機晶振,顯卡晶振.
Skyworks Crystal,511BBA100M000BAG,6G無線網絡晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 100MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±25 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 23mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 48%~52% | 在輸出交叉點 |
| 輸出電壓 | VOC | 1.33V Max |
LVDS
|
| VO | 0.45Vpp Max | ||
| 輸入電壓 | VIH | 80%VDD Min |
|
| VIL | 20%VDD Max | ||
| 上升下降時間 | tr/tf | 800ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.55ps Max |
Differential Formats
|
.jpg)

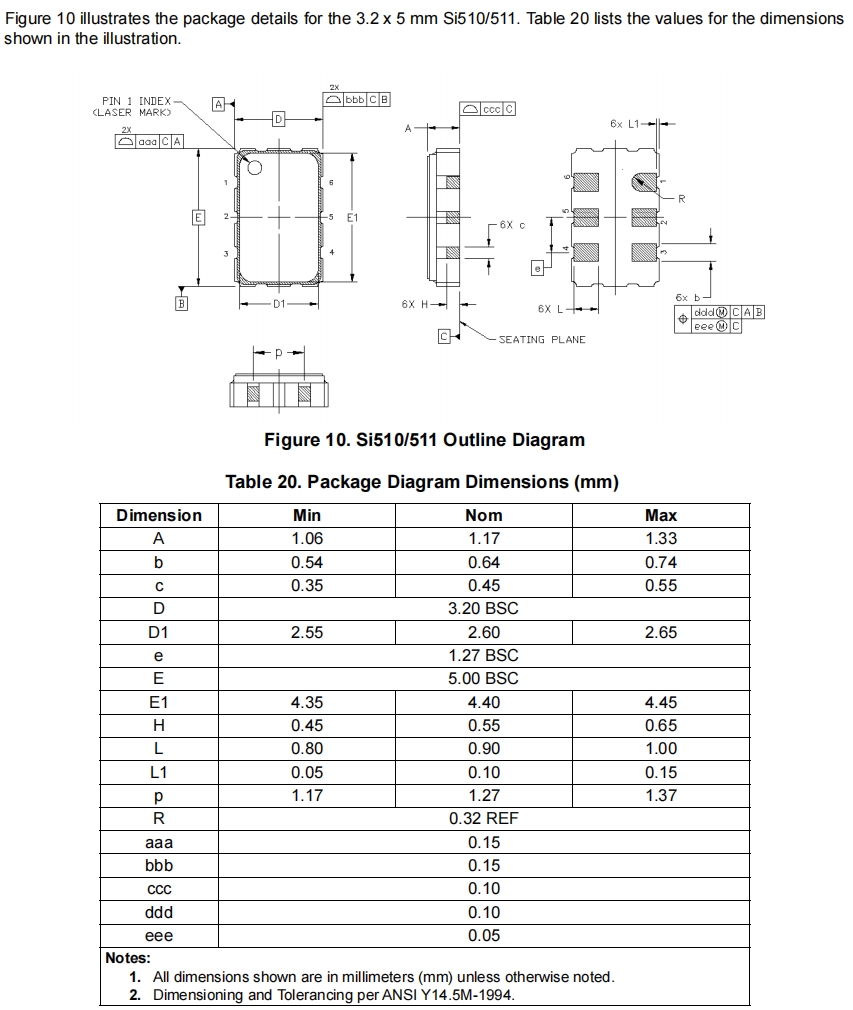

Skyworks Crystal,511BBA100M000BAG,6G無線網絡晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 |
| 511BBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511FBA000330BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511BBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511BBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511ABA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511BCA160M000BAGR | Skyworks Solutions Inc. | Si511 | 160 MHz | LVDS | 3.3V |
| 511BBA74M2500BAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511BBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511BBA000110BAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511FBA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511BBA148M500BAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511JBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511FBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511JBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511FCA25M0000BAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 2.5V |
| 511FCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511JBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 1.8V |
| 511JBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 1.8V |
| 511BBA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511BBA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511ABA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA148M500AAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511BBA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511FBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511FBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511FBA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511FCA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511JBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511ACA156M250CAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511ABA25M0000AAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511FBA74M2500BAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511FBA000110AAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 2.5V |
| 511ABA155M520AAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA212M500AAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 3.3V |
| 511ABA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511ABA25M0000BAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511ABA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVPECL | 3.3V |
| 511ABA148M500AAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVPECL | 3.3V |
| 511ABA000336AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511ABA000110BAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVPECL | 3.3V |
| 511FBA106M250AAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511BBA000149AAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511FCA80M0000CAG | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 2.5V |
| 511BBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511DBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511ABA000336AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BCA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511BBA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511BBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 3.3V |
| 511BBA105M600AAG | Skyworks Solutions Inc. | Si511 | 105.6 MHz | LVDS | 3.3V |
| 511DCA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511BBA133M000AAG | Skyworks Solutions Inc. | Si511 | 133 MHz | LVDS | 3.3V |
| 511JCA233M250BAG | Skyworks Solutions Inc. | Si511 | 233.25 MHz | LVDS | 1.8V |
| 511FBA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511BBA155M520BAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511BBA000110AAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511FBA212M500BAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511FBA212M500AAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511ABA74M2500AAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511ABA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511BBA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511BBA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511JCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511ABA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511FBA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511FBA148M500BAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511BBA106M250AAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511FCA000292CAG | Skyworks Solutions Inc. | Si511 | 161.1328 MHz | LVDS | 2.5V |
| 511JCA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 1.8V |
| 511ABA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA155M520AAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511ABA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511FCA156M250CAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511FBA148M500AAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511DBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511FBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 2.5V |
| 511DBB100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511ACA11M0592BAGR | Skyworks Solutions Inc. | Si511 | 11.0592 MHz | LVPECL | 3.3V |
| 511ACA24M0000BAGR | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511ACA24M5760BAGR | Skyworks Solutions Inc. | Si511 | 24.576 MHz | LVPECL | 3.3V |
| 511ECA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511FAA153M600BAGR | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511ABA24M0000AAGR | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511EBB125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA000108BAGR | Skyworks Solutions Inc. | Si511 | 108 kHz | LVDS | 2.5V |
| 511ACA68M8128AAGR | Skyworks Solutions Inc. | Si511 | 68.8128 MHz | LVPECL | 3.3V |
| 511BCB125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ABA000185AAGR | Skyworks Solutions Inc. | Si511 | 185 kHz | LVPECL | 3.3V |
| 511FBA153M600AAGR | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511JBA150M000AAGR | Skyworks Solutions Inc. | Si511 | 150 MHz | LVDS | 1.8V |
| 511DBB100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511BBA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511FBA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511ABA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511FBA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 2.5V |
| 511ACA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511ACA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | LVPECL | 3.3V |
| 511DCA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | HCSL | 3.3V |
| 511DCA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | HCSL | 3.3V |
| 511ECA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 2.5V |
| 511ECA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | LVPECL | 2.5V |
| 511HCA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | HCSL | 2.5V |
| 511HCA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | HCSL | 2.5V |
| 511JCA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 1.8V |
| 511ABA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511FBA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511ABA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511FBA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511FBA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 2.5V |
| 511ABA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVPECL | 3.3V |
| 511BBA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511BBA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511FBA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 2.5V |
| 511ABA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511BBA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511FBA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511ABA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511FBA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511ABA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511ABA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511BBA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511FBA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511BCA004638BAGR | Skyworks Solutions Inc. | Si511 | 638 kHz | LVDS | 3.3V |
| 511BCA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511BCA135M000AAGR | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 3.3V |
| 511ABA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511BBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511FBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511ABA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511BBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511FBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511ABA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511ABA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511BBA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511FBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511BAA75M0000BAGR | Skyworks Solutions Inc. | Si511 | 75 MHz | LVDS | 3.3V |
| 511DAA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | HCSL | 3.3V |
| 511AAA10M0000CAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVPECL | 3.3V |
| 511JAB125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511DAB10M0000CAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | HCSL | 3.3V |
| 511FAA74M2500CAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511ABA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511FBA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511ABA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511FBA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511ABA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVPECL | 3.3V |
| 511BBA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 3.3V |
| 511FBA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511ABA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511FBA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511ABA000185AAG | Skyworks Solutions Inc. | Si511 | 185 kHz | LVPECL | 3.3V |
| 511FBA153M600AAG | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511JBA150M000AAG | Skyworks Solutions Inc. | Si511 | 150 MHz | LVDS | 1.8V |
| 511ABA24M0000AAG | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511EBB125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA000331BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511BBA10M0000BAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVDS | 3.3V |
| 511BBA5M00000BAGR | Skyworks Solutions Inc. | Si511 | 5 MHz | LVDS | 3.3V |
| 511BBA62M5000BAGR | Skyworks Solutions Inc. | Si511 | 62.5 MHz | LVDS | 3.3V |
| 511DBA27M0000BAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | HCSL | 3.3V |
| 511FBA96M0000BAGR | Skyworks Solutions Inc. | Si511 | 96 MHz | LVDS | 2.5V |
| 511JBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 1.8V |
| 511JBA67M5000BAGR | Skyworks Solutions Inc. | Si511 | 67.5 MHz | LVDS | 1.8V |
| 511JBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 1.8V |
| 511JBA52M0000CAGR | Skyworks Solutions Inc. | Si511 | 52 MHz | LVDS | 1.8V |
| 511BBA104M000BAGR | Skyworks Solutions Inc. | Si511 | 104 MHz | LVDS | 3.3V |
| 511ABA50M0000CAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVPECL | 3.3V |
| 511JBA116M625BAGR | Skyworks Solutions Inc. | Si511 | 116.625 MHz | LVDS | 1.8V |
| 511JBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 1.8V |
| 511FBA111M111CAGR | Skyworks Solutions Inc. | Si511 | 111.111 MHz | LVDS | 2.5V |
| 511JBA125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511JBA116M625CAGR | Skyworks Solutions Inc. | Si511 | 116.625 MHz | LVDS | 1.8V |
| 511FBA83M3333CAGR | Skyworks Solutions Inc. | Si511 | 83.3333 MHz | LVDS | 2.5V |
| 511JBA000346CAGR | Skyworks Solutions Inc. | Si511 | 33.333333 MHz | LVDS | 1.8V |
| 511BBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511LBA38M4000CAGR | Skyworks Solutions Inc. | Si511 | 38.4 MHz | HCSL | 1.8V |
| 511JBA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 1.8V |
| 511BBA125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ABA52M5000CAGR | Skyworks Solutions Inc. | Si511 | 52.5 MHz | LVPECL | 3.3V |
| 511FBA20M0000CAGR | Skyworks Solutions Inc. | Si511 | 20 MHz | LVDS | 2.5V |
| 511JBA10M0000BAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVDS | 1.8V |
| 511JBA72M0000CAGR | Skyworks Solutions Inc. | Si511 | 72 MHz | LVDS | 1.8V |
| 511FBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511DBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511JBB125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511DBA38M4000CAGR | Skyworks Solutions Inc. | Si511 | 38.4 MHz | HCSL | 3.3V |
| 511BBA50M0000CAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 3.3V |
| 511JBB120M000CAGR | Skyworks Solutions Inc. | Si511 | 120 MHz | LVDS | 1.8V |
| 511DBA27M0000CAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | HCSL | 3.3V |
| 511DBA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | HCSL | 3.3V |
| 511JBA80M0000CAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 1.8V |
| 511BBA72M0000BAGR | Skyworks Solutions Inc. | Si511 | 72 MHz | LVDS | 3.3V |
| 511LBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | HCSL | 1.8V |
| 511JBA66M6670BAGR | Skyworks Solutions Inc. | Si511 | 66.667 MHz | LVDS | 1.8V |
| 511JBA26M0000CAGR | Skyworks Solutions Inc. | Si511 | 26 MHz | LVDS | 1.8V |
| 511BBA5M00000CAGR | Skyworks Solutions Inc. | Si511 | 5 MHz | LVDS | 3.3V |
| 511BBA80M0000CAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511BBA80M0000BAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511BBA70M6560BAGR | Skyworks Solutions Inc. | Si511 | 70.656 MHz | LVDS | 3.3V |
| 511ABA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511BCB125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ACA68M8128AAG | Skyworks Solutions Inc. | Si511 | 68.8128 MHz | LVPECL | 3.3V |
| 511ABA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511ACA11M0592BAG | Skyworks Solutions Inc. | Si511 | 11.0592 MHz | LVPECL | 3.3V |
| 511ACA24M0000BAG | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511ACA24M5760BAG | Skyworks Solutions Inc. | Si511 | 24.576 MHz | LVPECL | 3.3V |
| 511ECA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511FAA153M600BAG | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511ABA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511ABB107M500BAGR | Skyworks Solutions Inc. | Si511 | 107.5 MHz | LVPECL | 3.3V |
| 511BBA000306BAGR | Skyworks Solutions Inc. | Si511 | 25.00125 MHz | LVDS | 3.3V |
| 511BBA122M880BAGR | Skyworks Solutions Inc. | Si511 | 122.88 MHz | LVDS | 3.3V |
| 511BBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 3.3V |
| 511BBA27M0000BAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | LVDS | 3.3V |
| 511BBA30M7200BAGR | Skyworks Solutions Inc. | Si511 | 30.72 MHz | LVDS | 3.3V |
| 511BBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 3.3V |
| 511BBA53M6256BAGR | Skyworks Solutions Inc. | Si511 | 53.6256 MHz | LVDS | 3.3V |
| 511BBA96M0000BAGR | Skyworks Solutions Inc. | Si511 | 96 MHz | LVDS | 3.3V |
| 511BBA99M9960BAGR | Skyworks Solutions Inc. | Si511 | 99.996 MHz | LVDS | 3.3V |
| 511BBA99M9980BAGR | Skyworks Solutions Inc. | Si511 | 99.998 MHz | LVDS | 3.3V |
| 511BBB80M0000BAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511DBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511DBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | HCSL | 3.3V |
| 511EBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511EBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA108M000BAGR | Skyworks Solutions Inc. | Si511 | 108 MHz | LVDS | 2.5V |
| 511FBA30M7200BAGR | Skyworks Solutions Inc. | Si511 | 30.72 MHz | LVDS | 2.5V |
| 511FBA40M0000BAGR | Skyworks Solutions Inc. | Si511 | 40 MHz | LVDS | 2.5V |
| 511FBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 2.5V |
| 511FBA81M0000BAGR | Skyworks Solutions Inc. | Si511 | 81 MHz | LVDS | 2.5V |
| 511HBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 2.5V |
| 511JBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511JBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 1.8V |
| 511JBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511JBA20M0000BAGR | Skyworks Solutions Inc. | Si511 | 20 MHz | LVDS | 1.8V |
| 511JBA75M0000BAGR | Skyworks Solutions Inc. | Si511 | 75 MHz | LVDS | 1.8V |
| 511JBB125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受 專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 何疑問.讓您的消費得到保障。
3.質量保證，誠信為上 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.
深 圳 市 泰 河 電 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
電話:0755-27872782
手機:13824306246
郵箱:taiheth@163.com
Q Q:794113422
地址:深圳市寶安區40區33號工業城6樓
網址：http://m.lida00.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
微信:taihekj QQ:794113422
